FF-180SH Mini Brushed Motor 5V 8000rpm Tiny Electric Motor For Smart Pet Feeder

FF-180SH Mini Brushed Motor 5V 8000rpm Tiny Electric Motor For Smart Pet Feeder

Model Number: FF-180SH

Voltage Range: DC 1.5V - 6V

Rated Volt:5V

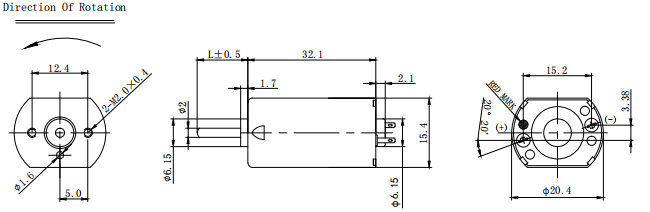

Motor Size: Maximum 15.4mm x 20.4mm

Shaft : Φ2.0mm(0.0787 inch), D shape, etc.

Shaft length free customization

No-load Speed:8000±640r/min

No-load Current:85mA

Shaft Length:8.8±0.3mm

Stall Torque: up to 168g.cm

Construction: Permanent Magnet

Clockwise/counter-clockwise rotation (CW&CCW)

Motor Customizations:
Shaft Length
Technical Parameters
Cables and Connectors
Eccentric Wheel Size and Material

FF-180SH Small Brushed Motor Electric Motor Model Types Table

NOTE:

1mNm= 1Ncm = 10.2gcm

Customized product parameter are available upon your request

How to Choose a Suitable Motor for Pet Smart Products

Selecting the right motor for pet smart products requires considering multiple factors:

Product Functional Requirements:

Different pet smart products have varying motor requirements. For example:

• Smart Feeders: Require precise control of feeding amount and timing. Stepper motors are suitable as they can accurately control angular or linear displacement for quantitative feeding.

• Pet Smart Dryers: Need fast drying with low noise. A 180 Size brushed DC motor is ideal due to its high speed, low noise, and long lifespan.

Load Requirements:

Choose motor torque based on the product's load. For instance:

• Large Smart Litter Boxes: Need to move heavy litter and scrapers. High-torque motors, such as geared motors, are recommended to ensure smooth operation.

Speed Requirements:

Different operating speeds require different motor speeds. For example:

• Pet Smart Toys: Require fast movement to attract pets. High-speed DC motors are suitable.

• Pet Smart Massage Mats: Have low speed requirements, so standard motors are sufficient.

Example Motor Specifications:

• Model Number: FF-180SH

• Voltage Range: DC 1.5V - 6V

• No-load Speed: 8000±640 rpm

Noise Levels:

Pets are sensitive to noise, so home-use pet smart products should use low-noise motors. Brushless DC motors and stepper motors, known for their smooth and quiet operation, are commonly used in noise-sensitive products like smart pet beds or companion robots.

Space Constraints:

The internal space of the product determines the motor size. For example:

• Small Pet Smart Trackers: Have limited space and require micro motors, such as micro DC motors or micro stepper motors.

Control Precision:

Products requiring high control precision, such as pet smart medical devices, should use high-precision motors like servo motors or stepper motors to ensure accurate operation.

Cost Considerations:

While meeting performance requirements, motor cost should also be considered. Generally:

• DC Motors: Lower cost.

• Brushless DC Motors and Stepper Motors: Higher cost, with cost differences becoming more significant in large-scale production.

By carefully evaluating these factors, you can select the most suitable motor for your pet smart product, ensuring optimal performance and user satisfaction.
