20mm 180 Micro Gearbox Electric Motor Gear Reduction Box 24v Dc Motor With Gearbox

Guang Dong Lihua Mechatronics Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

20mm 180 Micro Gearbox Electric Motor Gear Reduction Box 24v Dc Motor With Gearbox

Brand Name : Lihua Motor/HCS Motors

Model Number : GM20-180 /GA20-180

Certification : ISO9001,CE,RoHs,Reach,SGS

Place of Origin : Gongguan,China

MOQ : 1000pcs

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 10000pcs/day

Delivery Time : 40-45days

Packaging Details : Foam Box

Model : GM20-180 /GA20-180

Ratio : 78:1

Voltage Range : 12V

Motor Body Size : 15mmD*20mmH*32.1mmL (Without Gearbox )

Gearbox Size : 20mm D *L (Length can be custom)

Motor Category : 20mm DC Geared Motor

No-load Speed : 64rpm

Stall Torque : 3.99Kf.cm

Custom Service : ODM/OEM Accepted

Weight : 92g

Contact Now

20mm 180 Micro Gearbox Electric Motor Gear Reduction Box 12v Dc Motor With Gearbox



20mm 180 Micro Gearbox Electric Motor Gear Reduction Box 24v Dc Motor With Gearbox

This premium 20mm DC gear motor delivers strong torque output in a compact size, perfect for various applications. Built with durable metal gears and quality materials, it ensures long-lasting performance even under tough working conditions.

Key Features:
High Torque - Handles heavy loads with ease
Compact Design - Only 20mm diameter for easy installation
Smooth Operation - Minimal vibration and noise
Wide Voltage Range - Works with 3V-12V power input
Durable Construction - Made to last through continuous use

Standard Options: .Reduction Ratio: 18,25,30,36,50,60,71,85,100,120,169,200,239,284,336
Custom Ratios: Tailored to your exact speed/torque requirements

Custom Gearbox Height:

The gearbox is available in multiple lengths (11.2mm, 12.7mm, 14.2mm, 15.7mm,17.2mm) for flexible integration across applications.

20mm Gear Motor Specifications

Model : GA20-180 micro metal gearmotor

Gearbox: 20 mm Dia metal spur gear reducer

180 Motor Size:15.4mm*20.4mm*32.1 (H*D*L)

Shaft : Φ4mm D-cut 3.5mm,custom

Gear Box Size:20mm D*L mm (Length can be customized)
Shaft size : Approx. 4 x L mm (Dia.*L)
Nominal Voltage : DC 6V 12V

Operating Voltage:6V-12V
Revolving speed custom:

16RPM /42RPM / 105RPM /260RPM /15RPM/ 40RPM /100RPM /250RPM

Commutation: Carbon brush/Graphite brush/Metal brush;
Construction: micro Permanent Magnet iron cored dc electric motor;

Application:

  • Aircraft landing gear,Airplane toy,
  • Automotive Parts,Beauty instrument,
  • Commercial Products,Door lock,
  • Educational robot,Personal Care,
  • Security and Locks,Window actuator,etc.

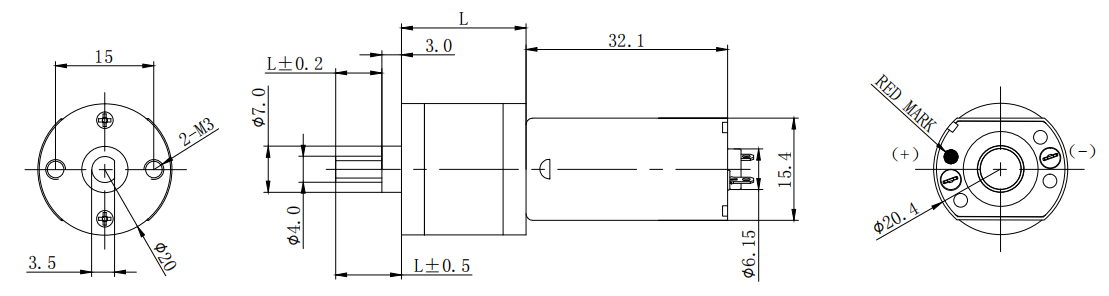

20mm 180 Micro Gearbox Electric Motor Gear Reduction Box Dimension


20mm 180 Micro Gearbox Electric Motor Gear Reduction Box 24v Dc Motor With Gearbox

Motor Outline Features:

  • Single 180 Motor Size:15.4mm*20.4mm*32.1(H*Dia*L)
  • Single 180 Motor Type:FF-180/FK-180
  • Gearbox Diameter:20±0.2mm
  • Gearbox Step Height:3mm
  • Gearbox Shaf Diamteter:4mm or 3.5mm D shaft (D-shaped output shaft is processed and milled to increase the force and friction, making the transmission more stable and convenient to connect and fix)
  • Mounting Screw Holes Size:3mm
  • Mounting Screw Holes Distance:15mm
  • Gearbox Outshaft Shape/Length can be custom

Ratio

12.7-15.8

25.4-44.7

50.7-126

143-354.8

403-1000

Gearbox Shaft Length

11.2

12.7

14.2

15.7

17.2

20mm 180 Micro Gearbox Electric Motor Gear Reduction Parameter List


Model



Volt

No-load

At Maximum Efficiency

Stall

V


Speed

Current

Speed

Current

Torque

Output

Torque

Current

r/min

A

r/min

A

Kg.cm

W

Kg.cm

A

GA20Y130-31

6

250

0.07

200

0.25

0.25

0.5

1.4

1.04

GA20Y130-78

6

100

0.07

79

0.28

0.56

0.5

3.1

1.04

GA20Y130-195

6

40

0.08

32

0.28

1.2

0.4

7

1.04

GA20Y130-488

6

15

0.08

12

0.3

2.3

0.3

12

1.04

GA20Y130-31

12

260

0.04

195

0.15

0.3

0.5

1.3

0.32

GA20Y130-78

12

105

0.04

80

0.15

0.69

0.4

2.8

0.32

GA20Y130-195

12

42

0.06

32

0.17

1.5

0.4

6.4

0.32

GA20Y130-488

12

16

0.06

12

0.17

3.8

0.3

11

0.32

Notes:The above list of parameters is a general parameter, if different needs can be processed according to requirements.
